High pressure high speed waste water treatment three lobe double tank Roots air blower 50mm(2") - 350mm(14")

•Driven by helical synchronous gears: Balanced transmission, low noise

•Adopting the advanced impeller curve in the world: increasing the Volume ratio, high efficiency

•All bearings are imported from NSK or SKF bearings, it has good loading performance and long lifetime.

•The oil seal is used CR seal imported from USA.

•Cooling way is air-cooled and water-cooled

•The impeller uses the blade shaft integrated structure . it avoids the defects of the blade shaft split structure.

•Compact structure, the same inlet and outlet blade structure, flexible installation

Speed: RPM 700-2200

Voltage: 220V, 380V ,400V

Power: 5.5kw -200kw

Pressure: 0.01Mpa -0.08Mpa

Exhuast port diameter: 50mm (2") - 350mm (14")

Bearing brand: NSK, SKF

Oil seal : CR from USA

main material: cast iron

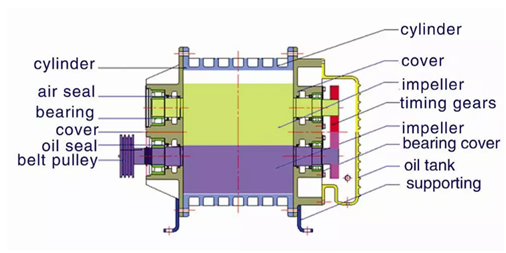

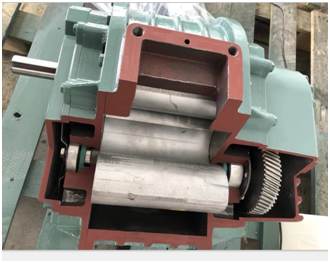

Main structure:

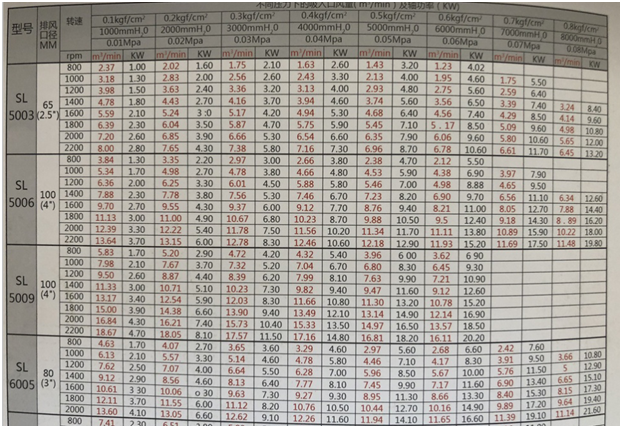

Specification :

Package and shipping terms

1) Standard exporting package box

2) Lead time is 7-12 days after payment
