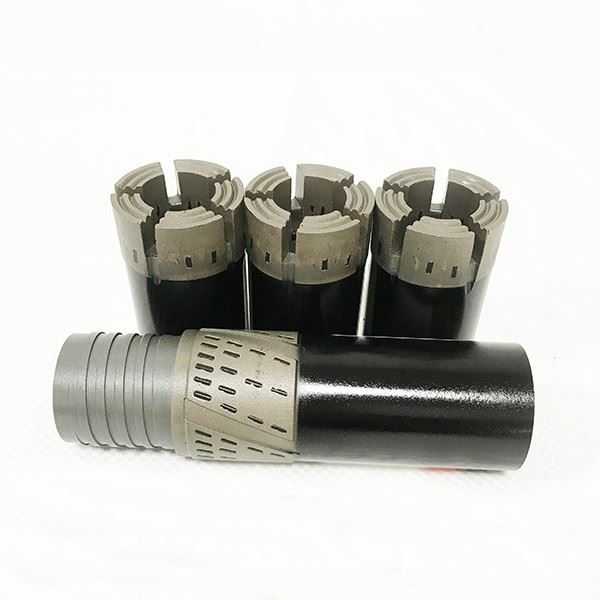

    Synthetic Diamond Wireline AQ AWL PCD Reaming Shell DCDMA Standard

    Ask Lasest Price
    Brand Name : SINOCOREDRILL
    Model Number : AQ AWL
    Certification : ISO9001
    Price : BASED ON DETAILED ORDER
    Payment Terms : L/C, T/T
    Supply Ability : 1000/ MONTH
    Delivery Time : 1 WEEK
    • Product Details
    • Company Profile

    Synthetic Diamond Wireline AQ AWL PCD Reaming Shell DCDMA Standard

    China Synthetic Diamond Wireline Reamer AQ /AWL PCD Reaming shell DCDMA Standard


    Description: AQ impregnated diamond reaming shell / AWL reamer
    Outside Diameter: 1.89" / 48.01mm
    Standard: DCDMA, equivalent to Boart Longyear and Atlas, Epiroc
    Types: impregnated diamond, surface set diamond
    MOQ: 1PC
    Certification: ISO 9001


    Diamond reaming shell are important tools to be used together with bits.

    Main functions :

    1. Maintaining borehole gage.

    2. Improving drill string stability and protecting lower drill string from excessive wear.

    3. Helical type reaming shell provides a good passage for drilling fluids.

    4. The matrix is wear proof and its service life is long.

    We provide both impregnated and surface set reaming shells with competitive price.


    SizeOuter Diameter
    (in.)(mm)
    AQ1.89548.1
    BQ2.36560.1
    NQ2.98575.8
    HQ3.78296.1
    PQ4.835122.8
    NQ32.98575.8
    HQ33.78296.1
    PQ34.835122.8

    Sizes Available
    Wireline series
    Geobor S, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
    T2 / T series
    T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
    TT series
    TT 46, TT 56
    T6 series
    T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
    T6S series
    T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
    B series
    B46, B56, B66, B76, B86, B101, B116, B131, B146
    MLC series
    NMLC, HMLC, 3C, 4C, 6C, 8C
    LTK series
    LTK48, LTK60
    WF series
    HWF, PWF, SWF, UWF, ZWF
    WT series
    RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
    WG series
    EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
    WM series
    EWM, AWM, BWM, NWM, HWM
    Other sizes
    AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H, SK6L
    Chinese standard
    56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
    Russian standard
    59, 76, 93, 112, 132, 152 mm
    Special sizes can also be made as per request.

    Drilling Steps:

    1. To mount drill rods, bits, and core barrel etc drilling tools with a diamond drill rig.

    2. To utilize a diamond drill bit attached to the end of drill rods to cut a cylindrical core of solid rock.

    3. To retrieve the core samples to the surface by retracting the winch cable which located on the top end of the core barrel, lowered inside the rod string.

    4. To remove the core sample from the core barrel, break it into small pieces to make it fit into the sample trays and catalogue.
